Carbon Steel Tube Sheet Flange for Industrial Heat Exchange Systems: A Practical Engineering Guide for Reliable Thermal Equipment Performance
Have you ever dealt with a heat exchanger project where tube alignment, sealing integrity, or long-term corrosion resistance became a real challenge during operation? I have seen this many times in industrial plants, especially when equipment operates under continuous thermal cycling and pressure variation.
In such systems, the Carbon Steel Tube Sheet Flange for Industrial Heat Exchange Systems plays a critical role. It is not just a structural component—it directly affects heat transfer efficiency, sealing reliability, and overall equipment safety.
Based on my experience at Zhejiang Songlin Flange Co., Ltd., I will explain how tube sheets are designed, manufactured, selected, and applied in real industrial heat exchange systems. This guide is practical and focused on real engineering conditions.
Table of Contents
What Is a Carbon Steel Tube Sheet Flange?
Why Tube Sheets Are Critical in Heat Exchangers
Industrial Applications and Real Use Cases
Manufacturing Process and Quality Control
How I Select Tube Sheets for Projects
Material and Structural Comparison
Installation and Maintenance Practices
Frequently Asked Questions

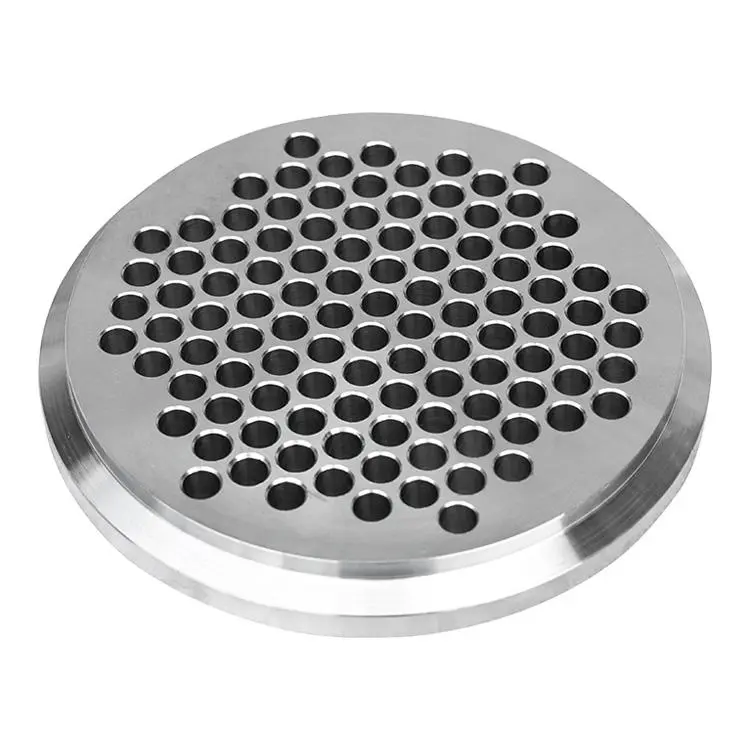

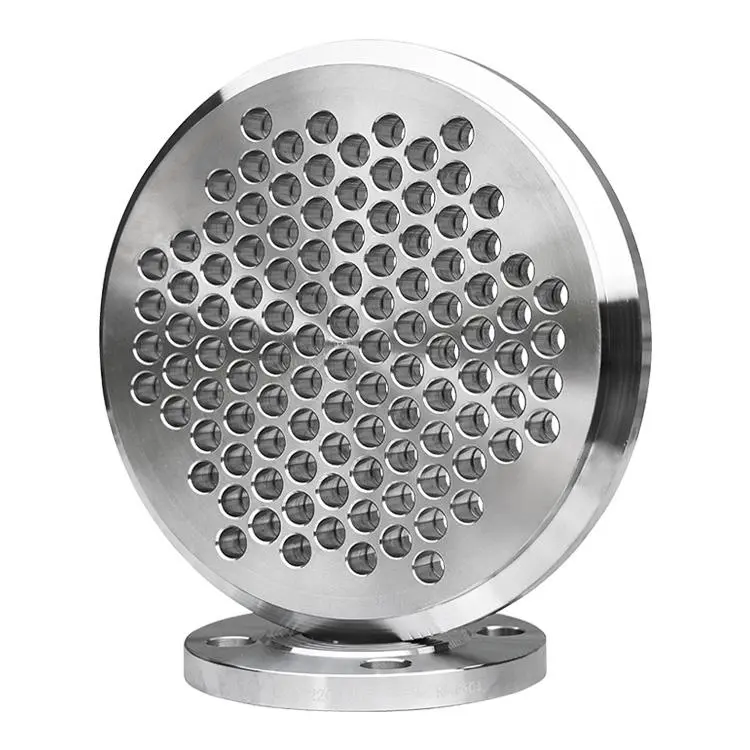

A Carbon Steel Tube Sheet Flange is a thick, precision-machined plate used in heat exchangers to hold and seal tubes in place. It serves as a structural base where hundreds or even thousands of tubes are inserted and fixed.
Its main functions include:
Supporting tube bundles
Separating different fluid channels
Ensuring sealing integrity between shell and tube sides
Maintaining structural alignment under pressure
At Zhejiang Songlin Flange Co., Ltd., we manufacture tube sheets using CNC machining and precision drilling to ensure every tube hole meets strict tolerance requirements.
From my experience, even a small deviation in tube hole spacing can seriously affect heat exchanger performance.
In industrial heat exchange systems, tube sheets are the core structural interface between fluid flow and thermal transfer.
Here is why Carbon Steel Tube Sheet Flange for Industrial Heat Exchange Systems is so important:
It holds thousands of tubes in precise alignment.
Prevents mixing between hot and cold fluid channels.
Proper tube positioning ensures consistent thermal flow.
Designed to withstand shell-side and tube-side pressure loads.
A well-made tube sheet reduces leakage and failure risk.
I have personally worked with Carbon Steel Tube Sheet Flange for Industrial Heat Exchange Systems across many industries.
Used in refinery heat exchangers for crude oil processing.
Installed in condensers and boiler heat recovery systems.
Handles corrosive and high-temperature fluid separation.
Used in seawater cooling systems and shipboard exchangers.
Supports large-scale cooling and heating exchange units.
Ensures hygienic thermal control in pasteurization systems.
Used in gas cooling and heat recovery equipment.
A tube sheet is not just a thick steel plate—it is a precision-engineered component.
At Zhejiang Songlin Flange Co., Ltd., we follow strict production steps:
Raw material inspection (carbon steel certification)
Cutting and rough shaping
CNC drilling of tube holes
Precision reaming for tolerance control
Heat treatment (if required)
Surface finishing
Dimensional inspection
Ultrasonic testing (UT)
Final quality verification
ASTM A105 Carbon Steel
ASTM A516 Gr.70
Low Alloy Steel
Stainless Steel (for special environments)
Each material is selected based on pressure, temperature, and corrosion conditions.
Selecting a Carbon Steel Tube Sheet Flange for Industrial Heat Exchange Systems requires careful engineering evaluation.
High-pressure systems require thicker and stronger tube sheets.
Thermal expansion affects tube alignment and sealing.
Oil, steam, seawater, and chemicals require different material choices.
Triangular or square pitch affects heat transfer efficiency.
Extra thickness may be required in aggressive environments.
Frequent cleaning systems need more durable designs.
Below are practical comparisons based on industrial standards and engineering experience.
| Feature | Carbon Steel Tube Sheet | Stainless Steel Tube Sheet |
|---|---|---|
| Cost | Lower | Higher |
| Strength | High | High |
| Corrosion Resistance | Medium | Excellent |
| Heat Transfer Use | Excellent | Good |
| Typical Application | Power & Oil Systems | Chemical Systems |
Source: ASTM A516 / A182 Material Standards
| Method | Precision Level | Application |
|---|---|---|
| Drilling Only | Medium | Low Pressure Systems |
| CNC Drilling + Reaming | High | Industrial Heat Exchangers |
| Precision Boring | Very High | Critical Equipment |
Source: ASM Manufacturing Engineering Handbook
| Design Type | Structural Strength | Application |
|---|---|---|
| Fixed Tube Sheet | High | Standard Heat Exchangers |
| Floating Tube Sheet | Medium-High | Thermal Expansion Systems |
| Removable Tube Sheet | Medium | Maintenance-Focused Systems |
Source: TEMA Heat Exchanger Standards
Even a high-quality Carbon Steel Tube Sheet Flange for Industrial Heat Exchange Systems must be properly installed.
Here are practical engineering tips I always recommend:
Ensure tube alignment before expansion
Use correct tube rolling or welding technique
Check hole cleanliness before installation
Avoid over-expansion of tube ends
Perform hydrostatic pressure testing
Inspect sealing areas regularly
Monitor corrosion during operation
Clean tubes periodically to maintain efficiency
Small installation errors can lead to major heat exchanger failures.
It supports and seals tubes inside a heat exchanger while maintaining pressure separation.
Because it offers high strength, good thermal performance, and cost efficiency.
Yes. We manufacture according to engineering drawings and project requirements.
Oil & gas, petrochemical, power generation, marine, HVAC, and food processing industries.
Extremely important—tube hole precision directly affects heat exchanger efficiency and sealing reliability.
From my experience in industrial manufacturing, I have found that the Carbon Steel Tube Sheet Flange for Industrial Heat Exchange Systems is one of the most important components in thermal equipment. It directly determines system efficiency, sealing safety, and long-term operational stability.
At Zhejiang Songlin Flange Co., Ltd., we combine CNC precision machining, strict inspection processes, and engineering expertise to deliver reliable tube sheet solutions for global industries. Whether for power plants, petrochemical systems, or industrial cooling equipment, our focus is always the same: precision, durability, and stable performance under real operating conditions.
