Industrial Hand Hole Flange for Boiler and Tank Maintenance Systems: A Practical Engineering Guide for Safe Inspection Access
Have you ever worked on a boiler or storage tank maintenance project where internal inspection became difficult because there was no proper access point? I have seen this problem many times in industrial plants, especially where equipment was originally designed without sufficient maintenance consideration.
In such cases, the Industrial Hand Hole Flange for Boiler and Tank Maintenance Systems becomes a simple but very important solution. It provides safe, convenient access for inspection, cleaning, and internal maintenance without dismantling the entire system.
Based on my experience at Zhejiang Songlin Flange Co., Ltd., I will share how Handhole components are designed, selected, and applied in real industrial environments. This guide is written from practical engineering experience, not theory alone.
Table of Contents
What Is an Industrial Hand Hole Flange?
Why Boilers and Tanks Need Handhole Access
Real Industrial Application Scenarios
Manufacturing Process and Quality Control
How I Select Handhole Flanges
Material and Design Comparison
Installation and Maintenance Tips
Frequently Asked Questions

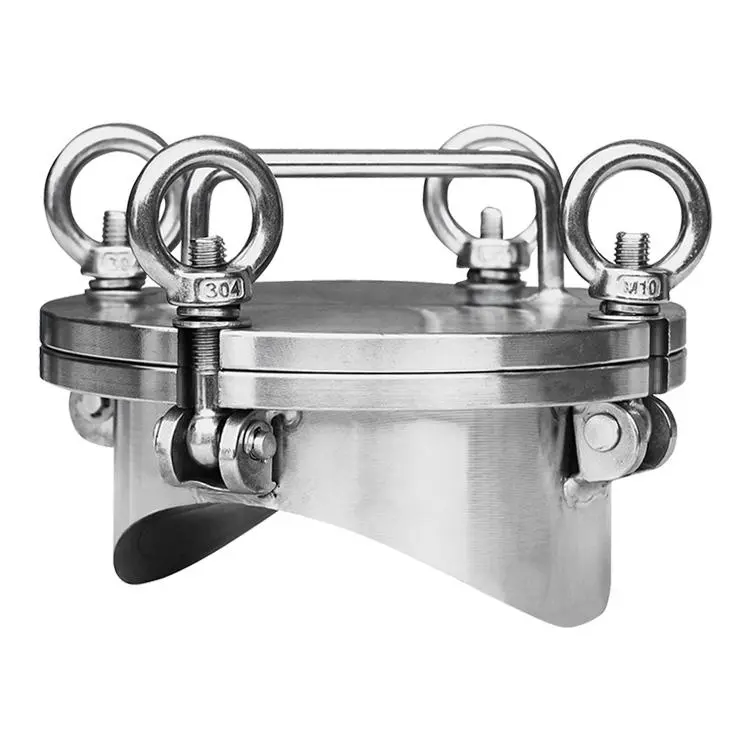

An Industrial Hand Hole Flange is a small access opening installed on boilers, pressure vessels, tanks, and pipelines. It allows workers to inspect, clean, or maintain internal equipment safely without large-scale disassembly.
A typical handhole assembly includes:
Handhole cover plate
Sealing gasket
Bolting system or clamp structure
Reinforced flange frame
At Zhejiang Songlin Flange Co., Ltd., we manufacture handhole components using CNC machining and strict dimensional control to ensure proper sealing and alignment.
From my experience, even a small handhole design can significantly improve maintenance efficiency in large industrial systems.
Boilers and storage tanks operate under pressure, heat, or chemical exposure. Over time, internal scaling, corrosion, or residue buildup is unavoidable.
Here are the key reasons I recommend Industrial Hand Hole Flange for Boiler and Tank Maintenance Systems:
Workers can check internal conditions without full disassembly.
Deposits and scale can be removed more efficiently.
Reduces the need for full system opening under pressure conditions.
Less downtime and fewer labor requirements.
Regular inspection prevents early equipment failure.
I have seen Industrial Hand Hole Flange for Boiler and Tank Maintenance Systems widely used in many industries.
Used for internal inspection and cleaning of steam boilers.
Allows safe access for internal maintenance under controlled conditions.
Used in corrosive environments requiring regular inspection.
Provides access for cleaning tubes and internal surfaces.
Ensures hygienic inspection and maintenance.
Used for sediment removal and internal checking.
Helps inspect corrosion and residue buildup safely.
Handhole components may look simple, but precision is very important for sealing safety.
At Zhejiang Songlin Flange Co., Ltd., we follow strict manufacturing procedures:
Raw material inspection
Cutting or forging
CNC machining of sealing surfaces
Bolt hole drilling
Gasket surface finishing
Dimensional inspection
Pressure sealing check
Anti-corrosion treatment
Final packaging
Carbon Steel (ASTM A105)
Stainless Steel (304 / 316)
Alloy Steel
Low Temperature Steel (A350 LF2)
Material choice depends on pressure, corrosion level, and working temperature.
When selecting an Industrial Hand Hole Flange for Boiler and Tank Maintenance Systems, I focus on real working conditions rather than just size.
Higher pressure requires stronger sealing and thicker plate design.
Steam, water, oil, and chemicals all affect material selection.
Thermal expansion must be considered in gasket selection.
Horizontal or vertical installation affects sealing design.
Frequent access requires durable sealing systems.
High-risk systems require reinforced locking structures.
Below are practical comparisons based on industrial experience and engineering standards.
| Feature | No Handhole Design | Industrial Hand Hole Flange |
|---|---|---|
| Maintenance Access | Difficult | Easy |
| System Downtime | High | Low |
| Safety Level | Lower | Higher |
| Cleaning Efficiency | Poor | Excellent |
| Inspection Capability | Limited | Full Access |
Source: Industrial Boiler Maintenance Engineering Standards
| Material | Corrosion Resistance | Strength | Typical Use |
|---|---|---|---|
| ASTM A105 | Medium | High | General Boilers |
| ASTM A182 F304 | Good | High | Food & Water Systems |
| ASTM A182 F316 | Excellent | High | Chemical Environments |
| Carbon Steel | Medium | Medium | Low Pressure Tanks |
Source: ASTM Material Specification A105 / A182
| Structure Type | Sealing Performance | Maintenance Ease | Application |
|---|---|---|---|
| Bolt-Type Cover | High | Medium | Pressure Vessels |
| Quick Open Clamp | Medium | High | Frequent Access Systems |
| Welded Frame + Cover | Very High | Low | High Pressure Boilers |
Source: ASME Boiler and Pressure Vessel Code (BPVC)
Even a well-made Industrial Hand Hole Flange for Boiler and Tank Maintenance Systems must be installed correctly.
Here are practical tips I always recommend:
Clean sealing surface before installation
Use correct gasket material
Tighten bolts in cross sequence
Avoid uneven pressure on cover plate
Check alignment before final tightening
Inspect gasket regularly
Replace gasket after repeated opening
Avoid over-tightening to prevent deformation
Proper installation directly affects sealing safety and equipment lifespan.
It provides safe and convenient access for inspection, cleaning, and maintenance of boilers and tanks.
They are widely used in boilers, pressure vessels, storage tanks, heat exchangers, and industrial processing systems.
Stainless steel (304/316) is preferred for corrosive environments, while carbon steel is used for general applications.
No, if properly designed and installed, they maintain full pressure integrity.
Yes. We manufacture based on customer drawings, including size, shape, and sealing structure.
From my experience in industrial manufacturing, I have found that the Industrial Hand Hole Flange for Boiler and Tank Maintenance Systems plays a small but extremely important role in equipment safety and long-term performance. It simplifies inspection, reduces downtime, and improves operational efficiency.
At Zhejiang Songlin Flange Co., Ltd., we design and produce reliable handhole solutions using CNC machining, strict quality inspection, and engineering experience. Whether for boilers, tanks, or pressure systems, our goal is always the same: safer access, easier maintenance, and longer equipment life in real industrial environments.
