Precision Engineered Non-Standard Flanges for Custom Equipment: A Practical Industrial Guide for Reliable Connection Systems

Introduction

Have you ever been in a situation where custom equipment design looks perfect on paper, but when it comes to piping connection, standard flanges simply don’t fit? I have encountered this many times in real industrial projects, especially in OEM equipment manufacturing, chemical systems, and heavy machinery integration.

In such cases, Precision Engineered Non-standard Flanges for Custom Equipment become the most reliable solution. These components are not just connectors—they are critical engineering parts that determine sealing reliability, structural alignment, and long-term system stability.

Based on my experience at Zhejiang Songlin Flange Co., Ltd., I will walk you through how these Custom Flanges are designed, selected, and applied in real industrial environments. This guide is practical, experience-based, and focused on real engineering needs.

Table of Contents

• What Are Precision Engineered Non-Standard Flanges?

• Why Custom Equipment Needs Non-Standard Flanges

• Real Industrial Application Scenarios

• Manufacturing Process and Quality Control

• How I Select Flanges for Custom Equipment

• Material and Design Comparison

• Installation and Engineering Tips

• Frequently Asked Questions

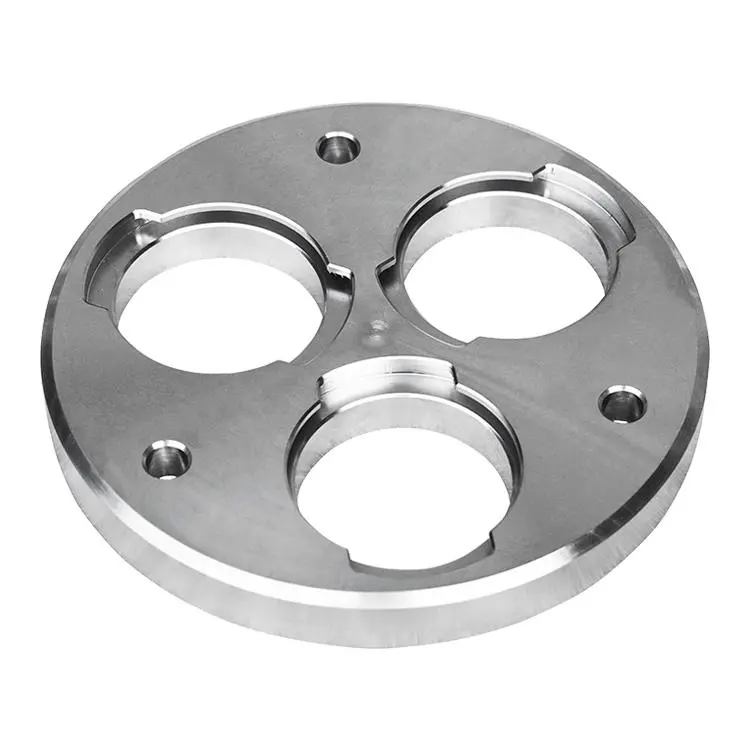

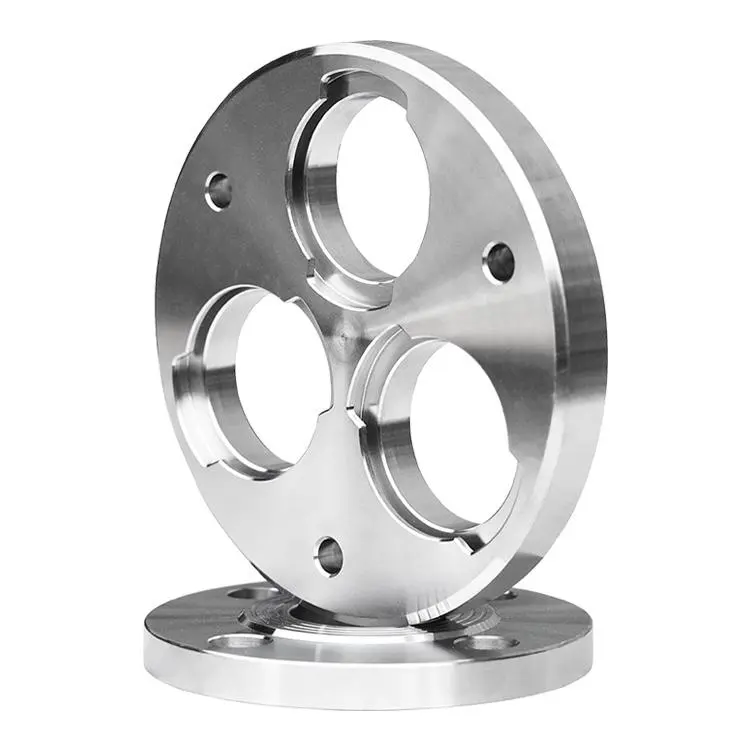

What Are Precision Engineered Non-Standard Flanges?

A Precision Engineered Non-Standard Flange is a fully customized flange manufactured according to engineering drawings rather than fixed international standards such as ASME, DIN, EN, or JIS.

In custom equipment systems, these flanges are designed with:

• Non-standard diameter and thickness

• Customized bolt hole layout

• Special sealing face design (RF, FF, RTJ, etc.)

• Material selection based on operating conditions

• Reinforced structural design

• High-precision CNC machining requirements

At Zhejiang Songlin Flange Co., Ltd., we produce these flanges using CNC machining centers combined with strict quality inspection systems. Every product is built based on customer drawings to ensure exact fit and performance.

From my experience, custom equipment almost always requires at least one non-standard connection point.

Why Custom Equipment Needs Non-Standard Flanges

Custom equipment is rarely designed around standard components. Instead, every system has unique space, pressure, and process requirements.

Here are the main reasons I recommend Precision Engineered Non-Standard Flanges for Custom Equipment:

Perfect Structural Matching

Custom flanges eliminate alignment issues between pipes and equipment.

Improved Safety Performance

Correct material and thickness reduce failure risk under load.

Better Sealing Stability

Precision-machined sealing surfaces ensure long-term leak-free operation.

Design Flexibility

Engineers can optimize layout without being restricted by standards.

Reduced Assembly Work

Less on-site modification improves installation efficiency.

Real Industrial Application Scenarios

I have seen Precision Engineered Non-Standard Flanges for Custom Equipment used in many real-world systems.

OEM Machinery Systems

Used in custom-built industrial machines requiring unique connection points.

Chemical Processing Equipment

Supports corrosion-resistant and high-pressure fluid systems.

Power Generation Units

Applied in boilers, turbines, and auxiliary piping systems.

Marine Engineering Equipment

Resists vibration, seawater corrosion, and structural stress.

Hydraulic Systems

Provides strong sealing in high-pressure hydraulic assemblies.

Heat Exchange Equipment

Handles thermal expansion and contraction reliably.

Automation Production Lines

Used in compact and space-limited mechanical assemblies.

Manufacturing Process and Quality Control

In custom equipment manufacturing, precision directly affects system performance.

At Zhejiang Songlin Flange Co., Ltd., our production process includes full engineering control:

Manufacturing Steps

1. Raw material inspection

2. Forging or plate preparation

3. Heat treatment (if required)

4. CNC precision machining

5. Bolt hole drilling with tolerance control

6. Sealing surface finishing

7. Dimensional inspection

8. Mechanical performance testing

9. Anti-corrosion treatment and packaging

Common Materials

• ASTM A105 Carbon Steel

• ASTM A350 LF2

• ASTM A182 F304 Stainless Steel

• ASTM A182 F316 Stainless Steel

• Duplex Stainless Steel

• Alloy Steel

Each material is selected based on pressure, temperature, corrosion, and mechanical load conditions.

How I Select Flanges for Custom Equipment

Selecting Precision Engineered Non-Standard Flanges for Custom Equipment requires understanding real operating conditions.

Pressure Requirements

Higher pressure requires stronger structure and thicker flange design.

Temperature Conditions

Thermal expansion must be considered in precision engineering.

Medium Type

Oil, gas, water, steam, and chemicals all require different material selection.

Flange Type Selection

Common options include:

• Weld Neck Flange

• Blind Flange

• Slip-On Flange

• Socket Weld Flange

• Lap Joint Flange

Installation Space

Compact systems require special flange geometry design.

Sealing Requirements

Gasket compatibility is critical for long-term performance.

Material and Design Comparison

Below are practical comparisons based on engineering standards and manufacturing experience.

Table 1. Standard vs Precision Engineered Non-Standard Flanges

Source: ASME B16.5, Industrial Equipment Design Standards

Table 2. Material Performance Comparison

Source: ASTM A182 Material Specification

Table 3. Manufacturing Method Comparison

Source: ASM Metals Handbook, Industrial Manufacturing Guidelines

Installation and Engineering Tips

Even Precision Engineered Non-Standard Flanges for Custom Equipment must be installed correctly to achieve full performance.

Here are practical tips I always recommend:

• Ensure precise alignment before tightening bolts

• Clean sealing surfaces thoroughly

• Use correct gasket material for system conditions

• Tighten bolts in a cross pattern

• Apply consistent torque values

• Avoid over-tightening flange faces

• Check alignment after installation

• Conduct pressure testing before operation

Small installation mistakes can affect the entire system performance.

Frequently Asked Questions

1. Why are non-standard flanges important in custom equipment?

They allow full customization to match unique engineering designs and installation conditions.

2. Can flanges be manufactured based on drawings?

Yes. We produce flanges according to CAD drawings and engineering specifications.

3. Which industries use these flanges most?

OEM machinery, chemical processing, power generation, marine engineering, and hydraulic systems.

4. Are precision engineered flanges more reliable?

Yes. Higher machining accuracy improves sealing performance and system stability.

5. Can they handle high-pressure applications?

Yes. They are widely used in high-pressure and high-temperature systems.

Conclusion

From my experience in industrial manufacturing, I have found that Precision Engineered Non-Standard Flanges for Custom Equipment are essential components for ensuring safe, stable, and efficient operation in modern engineering systems. Standard parts often cannot meet the complexity of real-world custom designs.

At Zhejiang Songlin Flange Co., Ltd., we combine CNC precision machining, strict quality control, and engineering expertise to deliver reliable custom flange solutions for global industries. Whether for OEM machinery, industrial piping, or complex custom systems, our focus is always the same: precision fit, long-term durability, and dependable performance in demanding environments.
