Reliable Non-Standard Flanges for Chemical Processing Equipment: A Practical Guide for Corrosion-Resistant Industrial Connections

Introduction

Have you ever worked on a chemical processing system where standard flange sizes or materials simply could not withstand the aggressive fluids or complex equipment layout? I have seen this situation many times in real industrial projects, especially in chemical plants, where corrosion, temperature variation, and pressure fluctuations create serious engineering challenges.

In these cases, Reliable Non-standard Flanges for Chemical Processing Equipment become essential. They are not just connectors—they are safety-critical components that directly affect system stability, sealing performance, and long-term operational reliability.

Based on my experience at Zhejiang Songlin Flange Co., Ltd., I will share practical insights into how these Custom Flanges are selected, manufactured, and applied in chemical industry environments. This guide is written to help engineers, procurement teams, and plant operators make safer and more efficient decisions.

Table of Contents

• What Are Reliable Non-Standard Flanges?

• Why Chemical Processing Requires Custom Flanges

• Real Chemical Industry Applications

• Manufacturing Process and Quality Control

• How I Select Flanges for Chemical Equipment

• Material and Performance Comparison

• Installation and Maintenance Practices

• Frequently Asked Questions

What Are Reliable Non-Standard Flanges?

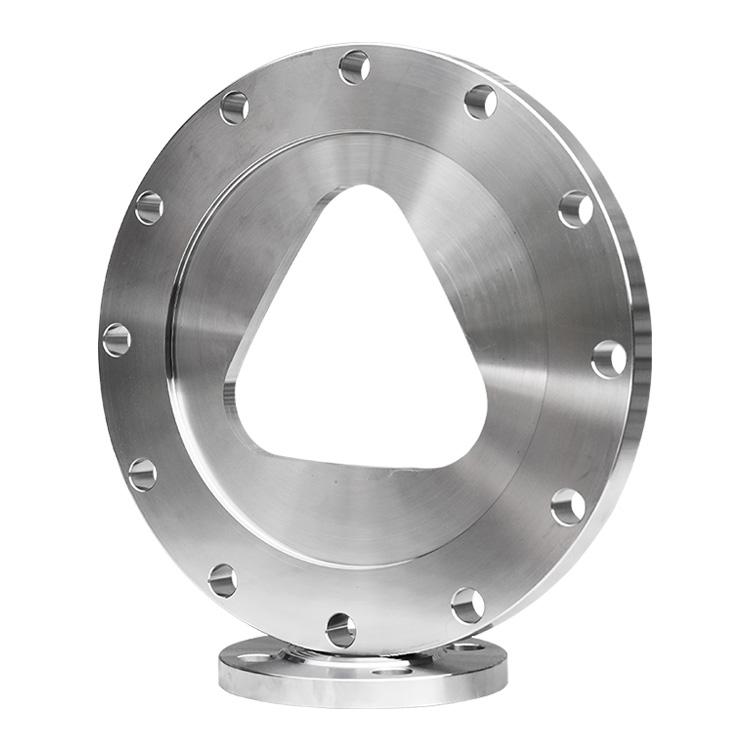

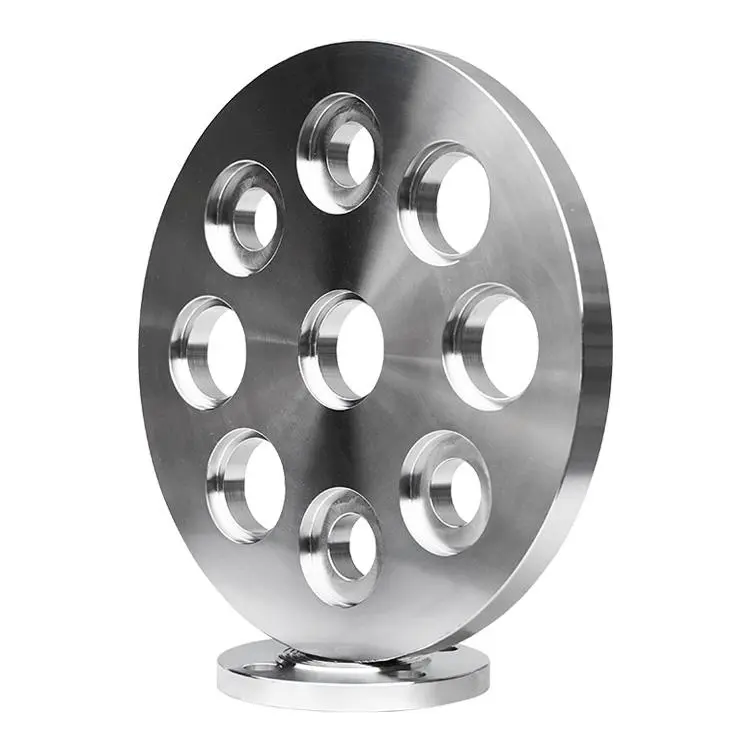

A Reliable Non-Standard Flange is a custom-engineered flange manufactured according to project-specific drawings instead of standard ASME, DIN, EN, or JIS specifications.

In chemical processing equipment, these flanges can be customized in:

• Diameter and thickness

• Bolt hole pattern

• Pressure rating

• Sealing face type

• Material grade

• Corrosion-resistant coating

• Welding connection type

At Zhejiang Songlin Flange Co., Ltd., we produce these flanges using CNC machining systems combined with strict inspection procedures. Each product is manufactured based on engineering drawings to ensure accuracy and safety.

From my experience, chemical plants rarely rely on standard flanges alone because chemical media vary too widely in corrosion behavior.

Why Chemical Processing Requires Custom Flanges

Chemical environments are among the most demanding industrial conditions. Even small design mismatches can lead to leakage, corrosion failure, or production shutdown.

Here are the key reasons I recommend Reliable Non-Standard Flanges for Chemical Processing Equipment:

Excellent Corrosion Resistance Matching

Different chemicals require different stainless steel or alloy materials.

Improved Safety Performance

Custom thickness and reinforcement reduce failure risk under pressure.

Better Sealing Reliability

Precision-machined sealing faces reduce leakage under chemical attack.

Equipment Compatibility

Flanges can be designed to match reactors, pumps, and pipelines exactly.

Reduced Maintenance Frequency

Longer service life reduces downtime and repair cost.

Real Chemical Industry Applications

I have personally supplied Reliable Non-Standard Flanges for Chemical Processing Equipment to many chemical engineering projects.

Chemical Reactors

High-pressure and highly corrosive environments require custom sealing systems.

Acid and Alkali Processing Systems

Special alloy flanges resist aggressive chemical reactions.

Solvent Recovery Units

Precision sealing prevents vapor leakage and improves safety.

Fertilizer Production Plants

Large-diameter flanges support high-volume chemical transfer systems.

Dye and Pigment Manufacturing

Strong corrosion resistance ensures stable production quality.

Pharmaceutical Chemical Equipment

High cleanliness and material purity are required.

Waste Chemical Treatment Systems

Durable flanges withstand mixed and unstable chemical media.

Manufacturing Process and Quality Control

In chemical processing applications, manufacturing quality directly affects plant safety.

At Zhejiang Songlin Flange Co., Ltd., we follow a strict production system covering engineering design, machining, and inspection.

Production Steps

1. Raw material testing

2. Forging process

3. Heat treatment

4. CNC precision machining

5. Bolt hole drilling

6. Sealing face finishing

7. Dimensional inspection

8. Chemical composition testing

9. Final packaging and traceability

Common Materials Used

• ASTM A182 F304

• ASTM A182 F316

• ASTM A316L

• Duplex Stainless Steel

• Nickel-Based Alloys

• Carbon Steel with anti-corrosion treatment

Each material is selected based on chemical resistance, temperature, and pressure requirements.

How I Select Flanges for Chemical Equipment

Selecting Reliable Non-Standard Flanges for Chemical Processing Equipment requires a careful engineering approach.

Chemical Medium

Acids, alkalis, solvents, and gases all require different materials.

Temperature Range

High temperatures accelerate corrosion and material degradation.

Pressure Requirements

Higher pressure requires stronger flange structure and thicker walls.

Flange Type

Common types include:

• Weld Neck Flange

• Blind Flange

• Socket Weld Flange

• Lap Joint Flange

• Threaded Flange

Sealing Performance

Gasket compatibility is critical in chemical environments.

Corrosion Allowance

Extra material thickness may be required for long-term exposure.

Material and Performance Comparison

Below are practical engineering comparisons based on industrial standards and real application experience.

Table 1. Standard vs Non-Standard Flanges in Chemical Equipment

Source: ASME B16.5, Chemical Process Equipment Design Standards

Table 2. Material Performance in Chemical Media

Source: ASTM A182 Standard Specification & Corrosion Engineering Handbook

Table 3. Manufacturing Method Comparison

Source: ASM Metals Handbook, Industrial Manufacturing Standards

Installation and Maintenance Practices

Even the best Reliable Non-Standard Flanges for Chemical Processing Equipment must be installed correctly.

Here are practical tips I always recommend:

• Clean sealing surfaces before installation

• Use corrosion-resistant gaskets

• Tighten bolts in a cross-pattern sequence

• Apply correct torque value

• Avoid over-tightening flange faces

• Perform regular leak inspections

• Replace gaskets when chemical degradation is visible

• Check flange alignment before system startup

Proper installation significantly reduces the risk of chemical leakage and equipment failure.

Frequently Asked Questions

1. Why are non-standard flanges important in chemical processing?

They allow full customization for corrosion resistance, pressure handling, and equipment compatibility.

2. Which material is best for chemical resistance?

ASTM A182 F316, duplex stainless steel, and nickel alloys are commonly used for strong chemical environments.

3. Can you manufacture flanges based on chemical plant drawings?

Yes. We produce custom flanges according to engineering drawings and technical requirements.

4. Do custom flanges improve safety?

Yes. Properly designed non-standard flanges reduce leakage risk and improve system reliability.

5. Where are these flanges most commonly used?

They are widely used in reactors, solvent systems, acid plants, fertilizer production, and pharmaceutical chemical equipment.

Conclusion

From my experience in industrial manufacturing, I have found that Reliable Non-Standard Flanges for Chemical Processing Equipment are essential for ensuring safety, stability, and long-term performance in aggressive chemical environments. Standard solutions often cannot meet the complexity of real chemical systems.

At Zhejiang Songlin Flange Co., Ltd., we combine CNC precision machining, strict material selection, and engineering expertise to deliver high-performance custom flange solutions for global chemical industries. Whether it is reactors, pipelines, or corrosion-intensive systems, our goal is always the same: safer sealing, longer service life, and reliable performance under the most demanding chemical conditions.
