High Quality Pressure Vessel Flange for Industrial Tank and Equipment Systems: A Practical Engineering Guide for Global Buyers

Introduction

Have you ever wondered what keeps a high-pressure tank or industrial reactor completely sealed even under extreme heat, pressure, and chemical exposure?

In my experience working with Industrial Flange manufacturing at Zhejiang Songlin Flange Co., Ltd., the answer often comes down to one critical component: the Pressure Vessel Flange.

A High Quality Pressure Vessel Flange for Industrial Tank and Equipment Systems is not just a connection part—it is a safety barrier. It ensures that pressure vessels, boilers, reactors, and industrial tanks operate safely without leakage or structural failure.

In this article, I will explain how Pressure Vessel Flanges work, how to choose the right type, real industrial applications, and practical engineering insights based on real manufacturing experience.

On This Page

• What Is a Pressure Vessel Flange

• Working Principle in Industrial Systems

• Materials and Manufacturing Process

• Industrial Applications

• Comparison of Flange Types

• Selection Guide for Engineers

• FAQ

• Conclusion

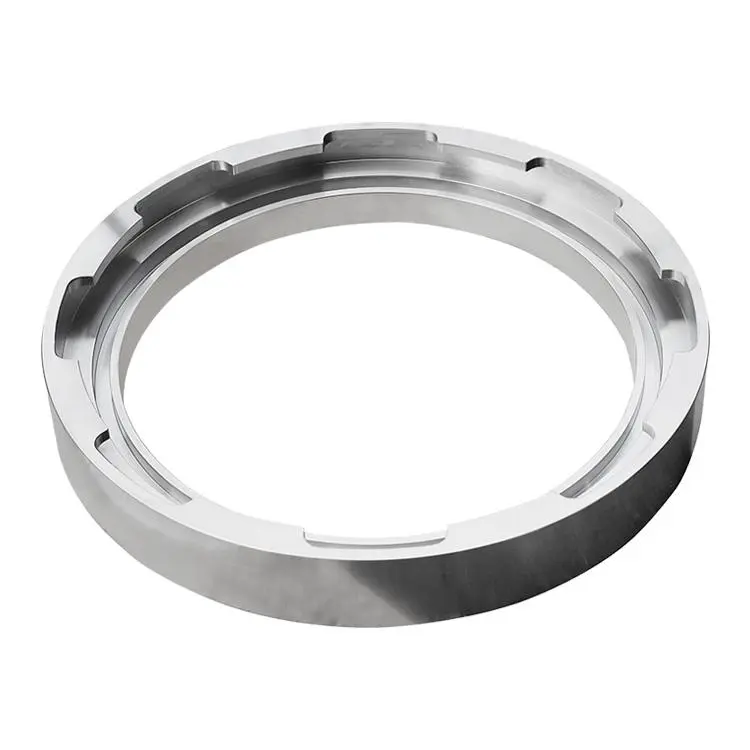

What Is a Pressure Vessel Flange

A pressure vessel flange is a specially designed flange used to connect parts of pressure vessels such as tanks, boilers, and reactors.

A High Quality Pressure Vessel Flange for Industrial Tank and Equipment Systems is designed to:

• Withstand high internal pressure

• Maintain airtight sealing

• Resist corrosion and fatigue

• Ensure safe operation of industrial equipment

From factory experience, this is one of the most safety-critical components in industrial systems. Even a small sealing defect can lead to serious operational risks.

Working Principle in Industrial Systems

Pressure vessel flanges work by creating a strong mechanical seal between two components.

The system typically includes:

• Flange body

• Gasket sealing layer

• Bolting system

• Vessel or tank interface

When bolts are tightened, pressure is evenly distributed across the gasket, creating a leak-proof seal.

A properly designed High Quality Pressure Vessel Flange for Industrial Tank and Equipment Systems ensures:

• Stable pressure containment

• Safe fluid storage and transfer

• Long-term structural integrity

Materials and Manufacturing Process

Material selection is extremely important in pressure vessel applications.

At Zhejiang Songlin Flange Co., Ltd., we use several materials depending on operating conditions.

Common Materials

• Carbon Steel (ASTM A105, SA516 Gr.70)

• Stainless Steel (304, 316L)

• Alloy Steel (F11, F22)

• Duplex Stainless Steel

Carbon steel is widely used due to its strength and cost efficiency.

Manufacturing Process

We follow strict production steps:

1. Raw material inspection

2. Forging or plate cutting

3. Heat treatment

4. CNC rough machining

5. Precision sealing surface machining

6. Bolt hole drilling

7. Dimensional inspection

8. Pressure-related testing

9. Surface finishing

10. Final quality control

Each High Quality Pressure Vessel Flange for Industrial Tank and Equipment Systems is individually inspected to ensure safety and reliability.

Industrial Applications

Pressure vessel flanges are widely used in heavy industries.

Petrochemical Industry

• Reaction vessels

• Distillation columns

• Storage tanks

Oil & Gas Industry

• High-pressure separators

• Offshore pressure systems

• Refinery equipment

Power Generation

• Boilers

• Steam drums

• Heat exchange systems

Chemical Industry

• Corrosive chemical reactors

• Acid and alkali storage tanks

Marine Engineering

• Pressure-controlled fuel systems

• Offshore containment systems

Comparison Table 1: Pressure Vessel Flange vs Standard Flange

Conclusion: Pressure vessel flanges are designed for safety-critical systems, not general pipelines.

Comparison Table 2: Material Performance in Pressure Systems

Selection Guide for Engineers

Choosing the right pressure vessel flange requires careful evaluation.

1. Understand Operating Conditions

• Pressure level (low / medium / high)

• Temperature range

• Fluid type

2. Choose Proper Material

• Carbon steel for general pressure systems

• Stainless steel for corrosive environments

• Alloy steel for high temperature

3. Check Design Standards

Common standards include:

• ASME Section VIII

• ASME B16.5

• EN standards

• DIN standards

4. Focus on Sealing Performance

Key factors:

• Gasket type

• Surface finish

• Bolt tightening accuracy

Practical Tip

In pressure vessel systems, sealing quality is more important than appearance or cost savings.

FAQ

1. What is a pressure vessel flange used for?

It connects and seals components in tanks, boilers, and pressure vessels.

2. Why are pressure vessel flanges important?

Because they ensure safe operation under high pressure and prevent leakage.

3. Can they be customized?

Yes, we manufacture according to drawings and project requirements.

4. What industries use them?

Oil & gas, petrochemical, power generation, chemical, and marine industries.

5. What inspections are performed?

PMI, UT, dimensional checks, and pressure testing when required.

Conclusion

A High Quality Pressure Vessel Flange for Industrial Tank and Equipment Systems is a core safety component in industrial engineering. It ensures that tanks, reactors, and boilers operate safely under high pressure and demanding conditions.

From my experience, successful pressure systems always depend on one thing: precision manufacturing and correct material selection.

At Zhejiang Songlin Flange Co., Ltd., we focus on producing reliable, high-strength flanges that meet real industrial requirements—not just theoretical standards.

If your project involves pressure vessels or industrial tanks, choosing the right flange is one of the most important engineering decisions you will make.
