Stainless Steel Sight Glass Flange for Corrosion Resistant Pipeline Monitoring: A Practical Industrial Guide

Introduction

Have you ever needed to check what is flowing inside a pipeline without stopping the system?

In many industrial plants, this is not just a convenience—it is a safety requirement. Operators need to see flow conditions, detect contamination, and monitor process stability in real time.

From my experience at Zhejiang Songlin Flange Co., Ltd., one of the most practical solutions for this requirement is the Stainless Steel Sight Glass Flange for Corrosion Resistant Pipeline Monitoring.

This component allows visual inspection of fluids inside pipelines, tanks, and process systems without interrupting operation. It is widely used in chemical plants, food processing, pharmaceutical production, water treatment, and marine engineering.

In this guide, I will explain how sight glass flanges work, why stainless steel is important, how to select the right type, and what real industrial experience teaches about safe and efficient monitoring.

On This Page

• What Is a Sight Glass Flange

• How It Works in Pipeline Systems

• Material Selection and Corrosion Resistance

• Industrial Applications

• Stainless Steel vs Carbon Steel Comparison

• Selection Guide for Engineers

• FAQ

• Conclusion

What Is a Sight Glass Flange

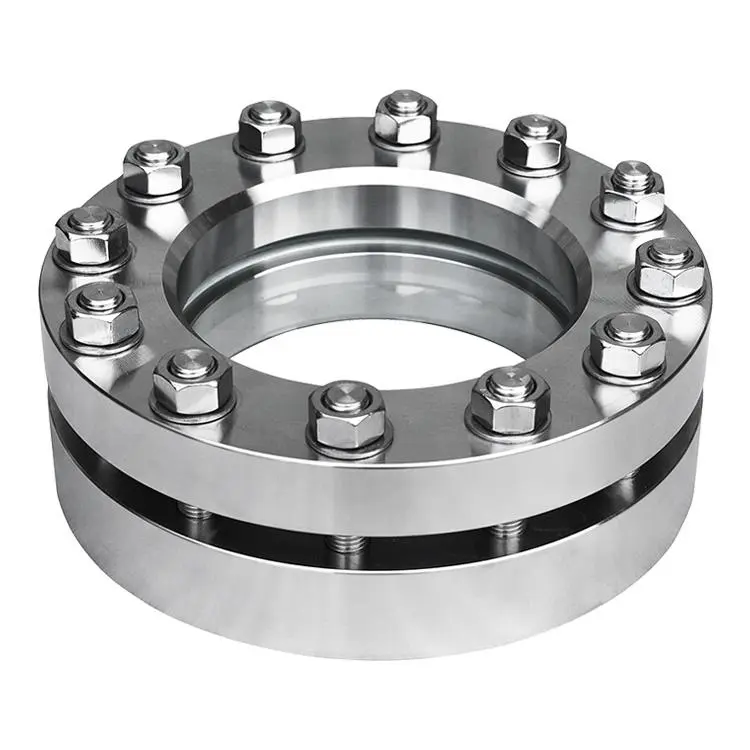

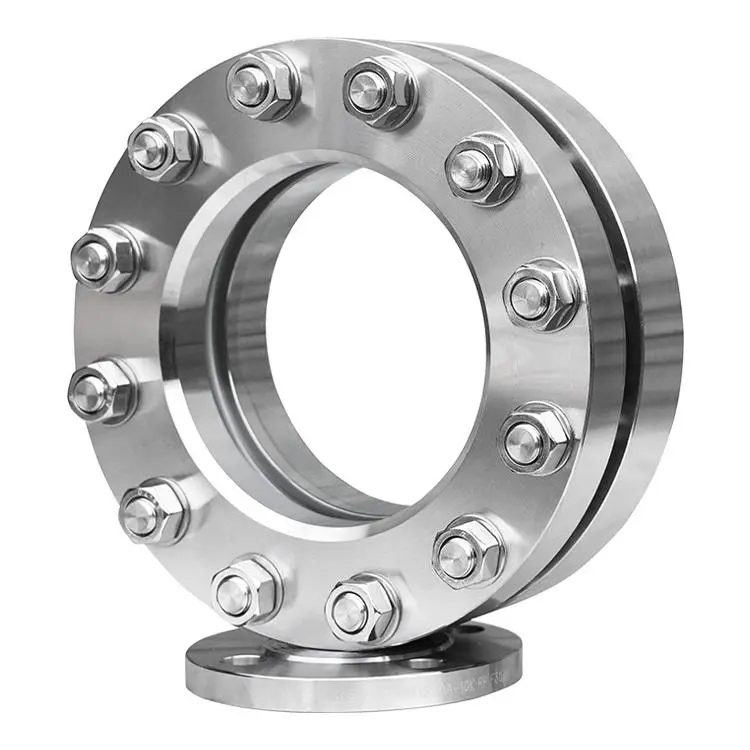

A sight glass flange is a special type of flange designed to hold a transparent viewing window (usually tempered glass or borosilicate glass).

A Stainless Steel Sight Glass Flange for Corrosion Resistant Pipeline Monitoring is used when operators need to visually inspect fluid conditions inside a pipeline or tank.

It typically consists of:

• Flange body (stainless steel)

• Transparent glass window

• Gasket sealing system

• Bolting assembly for pressure tightness

From a manufacturing point of view, the sealing structure is the most critical part. Even a small leakage can cause system failure or safety risks.

How It Works in Pipeline Systems

The working principle is simple but very effective.

When installed in a pipeline or vessel:

1. Fluid flows through the system

2. The glass window allows real-time visual monitoring

3. Operators can check flow color, clarity, bubbles, or contamination

4. System continues running without interruption

A properly designed Stainless Steel Sight Glass Flange for Corrosion Resistant Pipeline Monitoring ensures:

• Safe pressure containment

• Clear visibility

• Corrosion resistance

• Long service life

In real operations, this helps reduce downtime and improves process control efficiency.

Material Selection and Corrosion Resistance

Material choice is extremely important because sight glass flanges often work in harsh environments.

At Zhejiang Songlin Flange Co., Ltd., we mainly use stainless steel grades:

• 304 Stainless Steel

• 316 Stainless Steel

• 316L Stainless Steel (preferred for corrosion resistance)

Why stainless steel matters:

• Strong resistance to chemical corrosion

• Stable performance in humid environments

• Long-term durability under pressure

• Suitable for food-grade and pharmaceutical systems

Manufacturing Process

The production of a Stainless Steel Sight Glass Flange for Corrosion Resistant Pipeline Monitoring requires precision machining.

Our process includes:

1. Raw material inspection

2. CNC machining of flange body

3. Precision sealing surface finishing

4. Glass seat machining

5. Heat treatment (if required)

6. Assembly testing

7. Pressure and leakage inspection

8. Final quality control

Each unit is tested individually because safety depends on sealing performance.

Industrial Applications

Sight glass flanges are widely used in industries requiring continuous monitoring.

Chemical Industry

Used to monitor reaction liquids and corrosive chemicals.

Food & Beverage Industry

Used for hygiene control and liquid clarity inspection.

Pharmaceutical Industry

Used in sterile processing systems.

Water Treatment Plants

Used to monitor filtration and chemical dosing processes.

Marine Engineering

Used in seawater and fuel monitoring systems.

Comparison Table 1: Stainless Steel vs Carbon Steel Sight Glass Flanges

Conclusion: Stainless steel is the preferred choice for corrosion-resistant monitoring systems.

Comparison Table 2: Sight Glass Material Options

Selection Guide for Engineers

Choosing the right sight glass flange requires practical thinking.

1. Define Fluid Type

• Corrosive chemicals → 316L stainless steel

• Water systems → 304 stainless steel

• High-purity systems → sanitary design

2. Check Pressure Rating

Common industrial classes:

• Class 150

• Class 300

• Class 600

3. Choose Glass Type

• High temperature → quartz glass

• Chemical resistance → borosilicate glass

4. Ensure Proper Sealing Design

Leakage prevention depends on:

• Gasket quality

• Bolt tightening force

• Machining accuracy

Practical Advice

In corrosive environments, always choose 316L stainless steel even if initial cost is higher—it significantly reduces long-term maintenance risk.

FAQ

1. What is a sight glass flange used for?

It allows operators to visually monitor fluid conditions inside pipelines or tanks.

2. Why use stainless steel instead of carbon steel?

Because stainless steel offers much better corrosion resistance and longer service life.

3. Can sight glass flanges handle high pressure?

Yes, depending on design and pressure class, they can be used in industrial pressure systems.

4. What industries use sight glass flanges?

Chemical, food, pharmaceutical, water treatment, and marine industries.

5. Can they be customized?

Yes, we manufacture based on drawings, including size, pressure rating, and material customization.

Conclusion

A Stainless Steel Sight Glass Flange for Corrosion Resistant Pipeline Monitoring is more than a viewing device—it is a critical safety and process control component.

From my experience, many production issues can be prevented simply by using real-time visual monitoring instead of relying only on sensors or manual checks.

At Zhejiang Songlin Flange Co., Ltd., we focus on producing reliable, precision-machined flanges that perform under real industrial conditions, not just theoretical specifications.

If your project requires durable and corrosion-resistant monitoring solutions, stainless steel sight glass flanges are one of the most reliable choices available today.
