A custom neck flange for pipeline construction projects is a specialized piping component designed to connect
pipelines, valves, pressure vessels, and related equipment with a reliable, high-strength, and leak-resistant joint.
In modern pipeline engineering, custom neck flanges are widely used where Standard Flange sizes, pressure ratings, or
geometries cannot fully meet project requirements. They are manufactured according to specific dimensions, materials,
pressure classes, facing types, and design conditions to support safe and efficient pipeline construction.
For pipeline construction projects, flange selection is not just a matter of connection method. It affects system integrity,
installation efficiency, maintenance access, corrosion resistance, pressure handling, thermal performance, and long-term
operational safety. A custom neck flange provides the flexibility to match unique pipeline layouts, non-standard equipment
interfaces, and challenging field conditions. This makes it an essential component in oil and gas pipelines, water supply
networks, chemical piping systems, offshore projects, power plant pipelines, and industrial process lines.
This guide explains the definition, key features, technical advantages, material options, dimensions, specifications,
applications, and selection considerations of a custom neck flange for pipeline construction projects. It is written with
SEO-friendly structure and industry-focused terminology for use in blogs, category pages, product landing pages, and
technical resource pages.

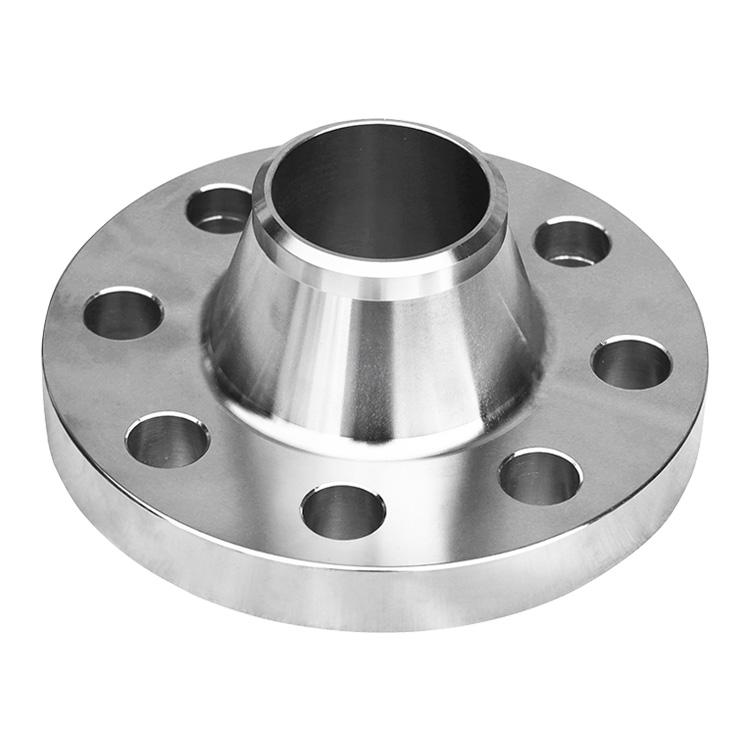

A custom neck flange is a flange with an extended hub or neck section that is welded to a pipe or fitting. The neck helps
transfer stress from the flange to the pipeline gradually, making it stronger than flat-faced or slip-on flange designs in
many demanding applications. The term “custom” means the flange is designed or manufactured according to project-specific
requirements rather than only standard catalog dimensions.
In pipeline construction, custom neck flanges are often required when:
Because of these factors, custom neck flanges are widely used in critical pipeline construction projects where standard flanges
are not sufficient. They are commonly fabricated from carbon steel, stainless steel, alloy steel, duplex steel, and other
engineered materials depending on service conditions.
Pipeline construction projects often involve long-distance transport systems, high-pressure service, underground routing,
offshore environments, and complex tie-in operations. In such conditions, connection reliability is essential. A custom neck
flange improves connection quality by offering a strong welded transition between the pipe and the bolted flange assembly.
Compared with simpler flange types, the neck design offers better stress distribution and improved resistance to mechanical
deformation. This is particularly valuable where pipelines face cyclic pressure, vibration, temperature fluctuations,
external loads, or frequent maintenance disassembly.
Custom neck flanges are also important during construction because they can reduce field modification work. Instead of forcing
a standard flange to fit an unusual layout, engineers can specify a flange that matches the actual pipeline design. This can
improve installation accuracy, reduce rework, and support better project scheduling.
| Advantage | Technical Benefit | Construction Value |
|---|---|---|
| High strength connection | Neck design transfers stress smoothly to the pipe | Improves reliability in pressure pipeline systems |
| Custom dimensions | Can be tailored to non-standard pipe sizes and layouts | Reduces on-site modification and fitting issues |
| Better sealing performance | Supports precise facing and gasket matching | Helps reduce leakage risk |
| Suitable for demanding service | Can be made for high pressure, high temperature, and corrosion resistance | Supports critical infrastructure applications |
| Easier maintenance access | Bolted flange joints can be opened for inspection or replacement | Improves lifecycle serviceability |
| Project-specific engineering | Can be produced to meet exact design codes and connection requirements | Fits specialized pipeline construction specifications |
In pipeline construction, the term neck flange may refer to several related flange designs with a raised hub or neck-like
profile. The exact type depends on engineering standards and connection requirements.
The weld neck flange is the most common neck flange type in pipeline construction. It has a long tapered hub that is welded
to the pipe with a butt weld. This design offers excellent stress distribution and is suitable for high-pressure and
high-temperature pipelines.
A long weld neck flange has an extended neck length and is often used in vessel nozzles, large equipment connections, or
special pipeline tie-ins. It can help bridge distance between components and provide structural support.
A reducing neck flange is used when the flange bore or connection size changes from the pipeline size. This is useful in
transitions, space-saving layouts, and process tie-ins requiring size adaptation.
A custom fabricated neck flange is produced to project-specific dimensions, hole patterns, hub lengths, face types, or special
material requirements. This option is common in non-standard pipeline construction work.
Material selection is one of the most important factors in the performance of a custom neck flange for pipeline construction
projects. The right material depends on temperature, pressure, corrosion exposure, mechanical load, and fluid type.
| Material Type | Typical Characteristics | Common Pipeline Applications |
|---|---|---|
| Carbon steel | Strong, economical, widely available | Water pipelines, oil and gas transmission, general industrial piping |
| Stainless steel | Excellent corrosion resistance and cleanability | Chemical pipelines, food processing, marine systems, water treatment |
| Alloy steel | Good high-temperature and high-pressure performance | Power plants, refinery piping, steam pipelines |
| Duplex stainless steel | High strength and strong resistance to chloride corrosion | Offshore pipelines, seawater systems, aggressive environments |
| Nickel alloy | Excellent resistance to severe corrosion and heat | Special chemical service, extreme environments |
| Low temperature steel | Improved toughness in cold service | Cold-region pipelines, LNG-related systems |
Custom neck flanges can be manufactured according to international standards or fully customized project drawings. In many
cases, engineers specify a combination of standard design rules and custom dimensions to ensure compatibility and compliance.
| Specification Item | Possible Custom Options | Engineering Purpose |
|---|---|---|
| Nominal pipe size | From small-bore to large-diameter pipelines | Matches the pipeline line size |
| Pressure rating | Custom or standard classes such as 150, 300, 600, 900, 1500, 2500 | Supports design pressure requirements |
| Flange facing | Raised face, flat face, ring type joint, special face | Ensures proper sealing method |
| Bolt hole pattern | Standard or custom bolt-circle diameter and hole count | Matches mating components |
| Neck length | Standard, short, long, or project-specific length | Fits space and stress requirements |
| Bore size | Matched to pipe schedule or special dimensions | Ensures proper flow and weld fit-up |
| Material grade | Carbon steel, stainless steel, alloy, duplex, special alloys | Adapts to corrosion and service conditions |
| Surface treatment | Anti-rust coating, galvanizing, polishing, special lining | Improves durability and protection |
The dimensions of a custom neck flange for pipeline construction projects depend on pipe size, design pressure, flange class,
and project requirements. The following table shows common dimension categories rather than fixed universal values, since
Custom Flanges are often made to order.
| Dimension Category | Common Measurement Range | Notes |
|---|---|---|
| Outside diameter | Based on flange class and nominal size | Must align with mating flange and bolt circle |
| Bolt circle diameter | Standard or custom by engineering drawing | Controls bolt placement and joint compatibility |
| Bolt hole quantity | Varies by size and class | Influences tightening force distribution |
| Hub length | Short to extended length | Helps stress transition and weld access |
| Hub thickness | Depends on design pressure and material | Supports structural strength |
| Bore diameter | Matched to pipe inner diameter or special bore | Affects flow and welding fit |
| Face finish | As required by gasket type and sealing design | Impacts leak performance |
A custom neck flange must provide a reliable seal when assembled with the correct gasket and bolts. Flange facing and surface
finish are important because they affect gasket compression and leak prevention.
In many pipeline construction projects, sealing performance is improved by matching the flange face finish with the correct
gasket material, bolt load, and tightening sequence. Precision machining is especially important in custom flange production
because even small variations can affect joint tightness and long-term reliability.
Pipeline construction involves fabrication, alignment, welding, testing, coating, transportation, and installation. Custom neck
flanges support these stages in several ways.
Custom neck flanges can be made to exact bore and hub dimensions, helping welders achieve better alignment during fabrication.
This reduces gaps, rework, and fit-up errors.
Many pipeline projects must connect with pumps, compressors, separators, valves, tanks, or offshore modules. Custom neck
flanges ensure that connection points match the project layout and equipment interface requirements.
Instead of cutting or reworking standard parts in the field, project teams can install a flange that already matches the
required dimensions. This improves schedule control and helps maintain construction quality.
Because neck flanges are designed for welded connections and stress distribution, they are well suited for pipelines where
mechanical integrity and leak prevention are critical.
Custom neck flanges are used across a wide range of pipeline construction applications. Their versatility makes them suitable
for both standard and highly specialized systems.
| Application Area | Typical Use | Why Custom Neck Flange Is Needed |
|---|---|---|
| Oil and gas pipelines | Transmission lines, tie-ins, compressor stations | High pressure, safety, and special layout needs |
| Water pipeline systems | Municipal water, distribution lines, treatment plants | Varied diameters and long-service durability |
| Refinery piping | Process piping, utility headers, shutdown replacement sections | Pressure, temperature, and corrosion conditions |
| Chemical plants | Corrosive fluid transfer, reactor support piping | Special materials and sealing performance |
| Offshore pipelines | Subsea topside interfaces, marine transfer systems | Chloride resistance and structural reliability |
| Power generation | Steam, cooling, and auxiliary piping | Temperature resistance and connection integrity |
| LNG and cryogenic systems | Low-temperature transfer pipelines | Special toughness and dimensional accuracy |
Selecting the right custom neck flange requires a detailed engineering review. The flange should be evaluated together with
the pipe, gasket, bolts, welding method, pressure class, and operating environment.
In pipeline construction, poor flange selection can lead to leakage, bolt failure, alignment problems, and expensive downtime.
For this reason, custom neck flanges are often chosen not only for dimension matching but also for their ability to support
better long-term system performance.
The manufacturing process for a custom neck flange typically involves material selection, cutting, forging or machining,
drilling, facing, heat treatment if needed, inspection, and final surface finishing. Depending on the design and material,
the flange may be produced from forged stock or fabricated from plate and pipe sections.
Quality control is essential in custom neck flange production because the component plays a critical role in pipeline integrity.
Common inspection methods may include dimensional inspection, material verification, visual examination, non-destructive testing,
and surface finish checks.
| Inspection Item | Purpose | Typical Method |
|---|---|---|
| Dimensional check | Confirms flange size, bore, face, and bolt pattern | Calipers, gauges, measuring equipment |
| Material verification | Confirms correct alloy or steel grade | Mill certificates, marking review, testing |
| Surface inspection | Identifies cracks, defects, or machining issues | Visual and magnified inspection |
| NDT examination | Detects hidden defects in welds or body material | UT, PT, MT, RT as applicable |
| Hardness or heat treatment check | Verifies mechanical properties | Material testing and documentation |
During pipeline construction, proper installation of a custom neck flange can improve joint reliability and reduce future
maintenance issues. The welded neck connection helps position the flange accurately before final bolting.
Installation quality depends on clean flange faces, proper bolt tightening, correct gasket selection, and correct welding
procedures. Even the best custom neck flange must be installed correctly to achieve the intended sealing and structural
performance.
When specifying a custom neck flange for pipeline construction projects, project engineers should define the operating
conditions and connection details clearly. A complete specification helps avoid delays, compatibility problems, and unsafe
field adjustments.
| Selection Factor | What to Confirm | Why It Matters |
|---|---|---|
| Pipeline size | Nominal diameter and schedule | Ensures proper fit with pipe system |
| Operating pressure | Design and working pressure | Determines flange rating |
| Temperature range | Minimum and maximum service temperature | Affects material strength and sealing |
| Corrosion environment | Chemical exposure, humidity, salinity | Guides material and coating choice |
| Connection standard | Design code and mating flange standard | Prevents compatibility issues |
| Space and access | Available installation and maintenance clearance | Influences hub length and layout |
| Gasket type | Soft gasket or metal gasket requirement | Determines face finish and sealing method |
For SEO purposes, this topic naturally includes important industry keywords such as custom neck flange,
pipeline construction projects, weld neck flange, pipe flange,
custom flange manufacturing, pipeline connection, high pressure flange,
flange dimensions, flange material, and pipeline sealing. These terms are
relevant to engineers, purchasers, fabricators, and project managers searching for technical information online.
When creating website content, it is helpful to use these keywords naturally in headings, paragraphs, image alt text, and
table labels. Search engines often reward pages that clearly explain the subject, answer user intent, and organize content in
a structured format.
A custom neck flange for pipeline construction projects is a highly practical and technically important
component for modern pipeline systems. Its custom dimensions, strong welded connection, sealing reliability, and compatibility
with demanding service conditions make it a preferred choice for many engineering applications. Whether the project involves
oil and gas transmission, water infrastructure, offshore systems, refinery piping, or chemical transport, custom neck flanges
provide the flexibility and performance needed for safe construction and long-term operation.
By selecting the correct material, pressure class, facing type, and dimensional configuration, engineers can improve pipeline
reliability and reduce installation risk. For websites, this topic supports a wide range of SEO-friendly content formats,
including product category pages, technical guides, industry articles, and project resource pages. The combination of
definition, specifications, advantages, applications, and selection guidance makes it suitable for strong search visibility
and user engagement.
```
