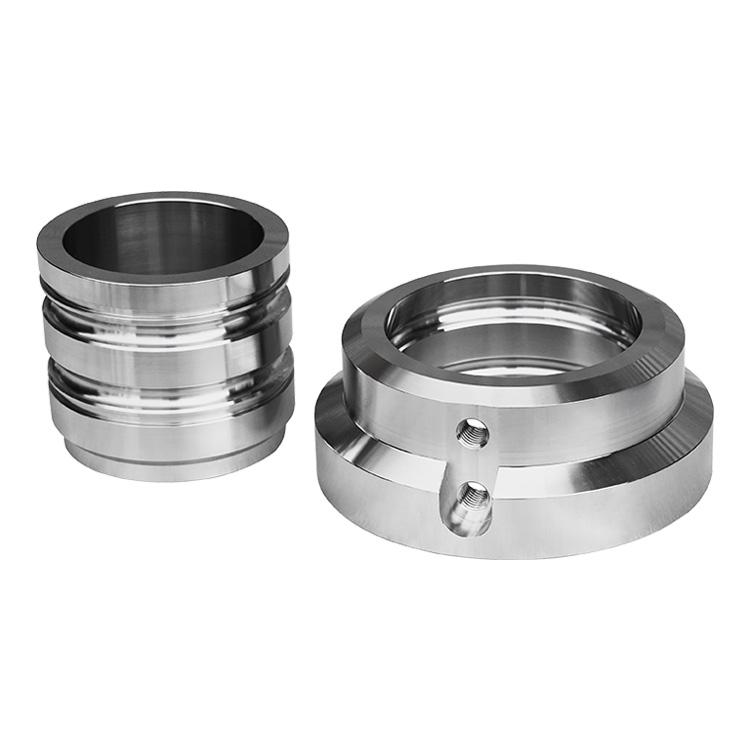

Industrial Non-Standard Flanges Manufactured to Customer Drawings

Introduction

Have you ever received a project drawing only to discover that no standard flange could meet the required dimensions? This is a common challenge in industrial manufacturing. While international standards such as ASME, EN, DIN, and JIS provide reliable solutions for many piping systems, they cannot cover every equipment design or engineering requirement.

As a manufacturer specializing in Industrial Non-standard Flanges Manufactured to Customer Drawings, we work with customers who need more than standard catalog products. They require precision components designed specifically for their equipment, operating conditions, and installation environments.

At Zhejiang Songlin Flange Co., Ltd., located in Longwan, Wenzhou—widely known as China's Valve City—we combine advanced CNC machining technology, modern inspection equipment, and years of production experience to manufacture customized flange solutions for customers around the world.

Our product range includes slip-on flanges, welding neck flanges, blind flanges, threaded flanges, socket weld flanges, lap joint flanges, Pressure Vessel Flanges, large-diameter flanges, Tube Sheets, and fully customized non-standard flanges.

Every project begins with a technical discussion. We carefully review customer drawings, analyze operating conditions, recommend suitable materials, and manufacture each flange according to precise specifications. By doing so, we help customers reduce installation challenges, improve sealing performance, and increase the overall reliability of industrial piping systems.

In this guide, we share our experience in Custom Flange manufacturing, explain why customer drawings are so important, compare materials and manufacturing methods, and provide practical tips that help engineers and industrial buyers make informed purchasing decisions.

On This Page

• What Are Industrial Non-Standard Flanges?

• Why Customer Drawings Matter

• Our Engineering and Manufacturing Process

• Material Selection Guide

• Industrial Applications

• How to Choose the Right Flange

• Frequently Asked Questions

• Conclusion

What Are Industrial Non-Standard Flanges?

An Industrial Non-Standard Flange is a flange designed and manufactured according to customer drawings or project-specific technical requirements rather than fixed international standards.

Unlike standard flanges, custom flanges are engineered to match unique equipment designs, special pressure ratings, or unusual installation environments.

Typical customized features include:

• Outside diameter

• Inside diameter

• Thickness

• Bolt hole diameter

• Bolt hole quantity

• Bolt circle diameter

• Facing type

• Pressure class

• Material grade

• Surface finish

Each flange is manufactured to solve a specific engineering challenge while ensuring compatibility with the customer's equipment.

Why Standard Flanges Cannot Solve Every Problem

Standard flanges are designed for general industrial applications.

However, many industries require customized solutions because of:

• Special equipment geometry

• High operating pressure

• Large-diameter pipelines

• Pressure vessel connections

• Heat exchanger designs

• Offshore engineering requirements

Attempting to modify a standard flange often increases installation time and may reduce overall reliability.

Producing a flange directly from the customer's drawing is usually the safest and most efficient solution.

Why Customer Drawings Are Essential for Industrial Projects

Customer drawings are much more than manufacturing documents.

They communicate every important technical detail needed to produce a flange that fits perfectly.

When we receive engineering drawings, we carefully review information such as:

• Overall dimensions

• Material specifications

• Pressure requirements

• Surface finish

• Tolerances

• Bolt layout

• Welding details

• Inspection standards

This information allows us to manufacture components that integrate seamlessly with existing equipment.

Improved Installation Accuracy

When a flange matches the original equipment drawing exactly, installation becomes much easier.

Benefits include:

• Faster assembly

• Better bolt alignment

• Reduced on-site machining

• Lower labor costs

• Shorter project schedules

These advantages become especially valuable for large industrial construction projects.

Better Equipment Compatibility

Equipment manufacturers frequently design proprietary connection dimensions.

By manufacturing flanges directly according to customer drawings, we eliminate compatibility issues that may occur when adapting standard products.

This approach also reduces the need for additional adapters or modifications.

Enhanced Safety

Industrial piping systems often transport:

• High-pressure steam

• Petroleum products

• Natural gas

• Corrosive chemicals

• Hazardous process media

Accurate flange dimensions help ensure proper gasket compression and reliable sealing performance.

Improved sealing contributes directly to operational safety.

Lower Lifecycle Costs

Although custom manufacturing may require additional engineering work initially, it often reduces overall operating costs by:

• Reducing leakage

• Improving equipment reliability

• Extending maintenance intervals

• Minimizing unexpected shutdowns

For many industrial operators, lifecycle cost is more important than purchase price alone.

Comparison: Standard Flanges vs Customer Drawing Manufacturing

Source: ASME B16.5, EN 1092-1, Zhejiang Songlin Flange Engineering Experience.

Our Engineering and Manufacturing Process

Successful custom flange production begins long before machining starts.

Our engineering team works closely with customers throughout every stage of the project.

Step 1 – Drawing Review

Every project starts with a detailed engineering review.

We evaluate:

• Technical drawings

• Operating pressure

• Temperature

• Working medium

• Material specifications

• Surface finish requirements

• Inspection standards

If improvements are possible, we discuss them with the customer before production begins.

Step 2 – Engineering Optimization

Based on manufacturing experience, we may recommend:

• Adjusting flange thickness

• Improving bolt layout

• Optimizing machining allowances

• Selecting more suitable materials

• Enhancing sealing surface design

These recommendations improve manufacturability while maintaining product performance.

Step 3 – Material Selection

Choosing the right material is critical.

We manufacture industrial non-standard flanges using:

• Carbon Steel

• Stainless Steel

• Alloy Steel

• Duplex Stainless Steel

• Nickel-Based Alloys

Each material is selected according to the application's pressure, temperature, corrosion resistance, and mechanical requirements.

Step 4 – Precision CNC Machining

Advanced CNC machining centers enable us to produce complex flange geometries with excellent repeatability.

Advantages include:

• High dimensional accuracy

• Smooth sealing surfaces

• Precise bolt positioning

• Stable production quality

Automation also helps improve manufacturing efficiency while maintaining strict tolerances.

Step 5 – Quality Inspection

Before shipment, every flange undergoes comprehensive inspection.

Inspection may include:

• Dimensional verification

• Material identification

• Surface finish inspection

• Hardness testing

• Visual inspection

• Non-destructive testing when required

Inspection reports can be supplied according to customer specifications.

Step 6 – Protective Packaging

Many Industrial Flanges travel long distances before installation.

To prevent transportation damage, we use:

• Protective flange covers

• Anti-corrosion treatment

• Export-grade wooden cases

• Secure packaging methods

Proper packaging helps ensure that sealing surfaces remain in excellent condition upon arrival.

Material Selection Guide for Industrial Non-Standard Flanges

Choosing the right material is one of the most important steps in manufacturing Industrial Non-Standard Flanges Manufactured to Customer Drawings. Even if a flange is machined with excellent precision, selecting an unsuitable material can reduce its service life or affect system safety.

When we receive a customer's drawing, we don't focus only on dimensions. We also evaluate the operating pressure, temperature, working medium, corrosion level, and expected service life. This allows us to recommend the most suitable material for the application.

Carbon Steel

Carbon steel remains the most popular choice for general industrial piping because it offers an excellent balance between strength and cost.

Advantages

• High mechanical strength

• Excellent machinability

• Competitive cost

• Good weldability

• Suitable for medium-pressure applications

Typical Applications

• Oil transmission pipelines

• Water treatment systems

• Utility piping

• General industrial equipment

Common grades include ASTM A105 and ASTM A350 LF2.

Stainless Steel

When corrosion resistance is required, stainless steel becomes the preferred option.

Advantages

• Excellent corrosion resistance

• Long service life

• Smooth surface finish

• Easy maintenance

• Good welding performance

Typical applications include:

• Chemical plants

• Food processing

• Pharmaceutical production

• Marine engineering

• Water treatment facilities

Common grades include ASTM A182 F304, F304L, F316, and F316L.

Alloy Steel

High-temperature and high-pressure systems require stronger materials.

Alloy steel provides:

• Excellent heat resistance

• Superior mechanical strength

• Long-term stability

• Good creep resistance

Typical industries include:

• Thermal power plants

• Steam systems

• Refineries

• Pressure vessels

Duplex Stainless Steel

For offshore and highly corrosive environments, duplex stainless steel combines high strength with outstanding corrosion resistance.

It offers:

• Excellent chloride resistance

• High yield strength

• Better fatigue performance

• Longer service life

This material is commonly used for offshore platforms and desalination facilities.

Nickel-Based Alloys

For highly aggressive chemical environments, nickel alloys provide the highest level of corrosion resistance.

They are suitable for:

• Strong acids

• Oxidizing chemicals

• High-temperature processing

• Specialized petrochemical equipment

Although more expensive, nickel alloys often reduce total lifecycle costs by minimizing maintenance and replacement.

Material Comparison Table

Source: ASTM A182, ASME Boiler & Pressure Vessel Code, ASM International Materials Handbook.

Industrial Applications

Custom flanges manufactured according to customer drawings are widely used across many industries because they provide better compatibility and higher reliability than modified standard products.

Below are several typical applications.

Pressure Vessel Manufacturing

Pressure vessels often require customized flange dimensions that cannot be found in standard catalogs.

Common requirements include:

• Larger outside diameters

• Increased flange thickness

• Customized bolt layouts

• Special sealing faces

Manufacturing according to engineering drawings ensures accurate assembly and reliable sealing.

Heat Exchangers

Heat exchangers frequently require precision-machined tube sheets and customized flange connections.

Accurate machining helps maintain proper alignment while improving sealing performance.

Oil and Gas Industry

Oil and gas facilities often operate under demanding conditions involving:

• High pressure

• High temperatures

• Continuous operation

• Corrosive media

Customized flanges improve installation efficiency and reduce maintenance downtime.

Petrochemical Plants

Chemical processing equipment often transports aggressive fluids.

Depending on the medium, engineers may specify:

• Stainless steel

• Duplex stainless steel

• Alloy steel

• Nickel alloys

• Customized sealing surfaces

These features increase safety while extending equipment life.

Marine Engineering

Marine environments expose equipment to constant humidity and saltwater.

To improve durability, customers often choose:

• Duplex stainless steel

• Stainless steel 316L

• Anti-corrosion coatings

• Precision-machined sealing surfaces

Reliable flange connections reduce maintenance costs for offshore facilities.

Water Treatment Facilities

Large water treatment projects frequently require oversized flanges with unique bolt arrangements.

Manufacturing according to customer drawings simplifies installation and reduces field modifications.

Practical Project Example

One of our customers manufactures industrial reactors for chemical processing.

The project required:

• A custom flange exceeding 1,800 mm in diameter

• Stainless steel material

• Special gasket groove

• Tight machining tolerances

• Full dimensional inspection

Our engineering team reviewed the drawings, optimized machining procedures, and produced the flanges using advanced CNC equipment.

The customer reported faster installation, improved sealing performance, and reduced project downtime compared with previous fabricated solutions.

How to Choose the Right Industrial Non-Standard Flange

Selecting the correct flange involves much more than matching dimensions.

We recommend evaluating the following factors before manufacturing begins.

1. Operating Pressure

Higher pressure usually requires:

• Stronger materials

• Thicker flanges

• Larger bolts

• Enhanced sealing surfaces

Pressure ratings should always be confirmed during the engineering review.

2. Working Temperature

Temperature directly affects material performance.

Typical recommendations include:

• Carbon steel for moderate temperatures

• Alloy steel for high-temperature steam

• Stainless steel for corrosive environments

• Duplex stainless steel for offshore service

Pressure and temperature should always be evaluated together.

3. Process Medium

Material selection depends heavily on the working fluid.

Important questions include:

• Is the medium acidic?

• Does it contain chlorides?

• Is abrasion present?

• Will corrosion occur over time?

Selecting the correct material improves reliability and extends service life.

4. Flange Design

Common flange types include:

• Slip-On Flange

• Welding Neck Flange

• Blind Flange

• Threaded Flange

• Socket Weld Flange

• Lap Joint Flange

• Pressure Vessel Flange

• Tube Sheet

• Fully Customized Non-Standard Flange

Each design offers different advantages depending on installation requirements.

5. Manufacturer Capability

A reliable supplier should provide more than machining services.

We recommend evaluating:

• CNC machining capability

• Engineering support

• Quality inspection systems

• Material traceability

• Export experience

• Delivery performance

These factors often determine the long-term success of an industrial project.

Comparison of Standard Manufacturing and Drawing-Based Manufacturing

Source: ISO 9001:2015 Quality Management System, ASME Manufacturing Practices, Zhejiang Songlin Flange Production Experience.

Practical Buying Tips

Based on our experience serving industrial customers worldwide, we recommend the following:

• Always provide complete engineering drawings whenever possible.

• Clearly specify operating pressure, temperature, and working medium.

• Confirm material grades before production begins.

• Request inspection reports for critical applications.

• Discuss packaging requirements for international transportation.

• Choose a manufacturer with strong engineering capabilities instead of focusing only on product price.

Careful planning during the design stage helps reduce manufacturing revisions, simplify installation, and improve the overall reliability of industrial piping systems. A professionally engineered Industrial Non-Standard Flange Manufactured to Customer Drawings is an investment that delivers long-term performance, lower maintenance costs, and greater operational safety.

Why Choose Zhejiang Songlin Flange Co., Ltd.

When purchasing Industrial Non-Standard Flanges Manufactured to Customer Drawings, selecting the right manufacturing partner is just as important as selecting the right material or design. A dependable supplier not only produces qualified products but also helps customers solve engineering challenges before they become production problems.

At Zhejiang Songlin Flange Co., Ltd., we have built our reputation on precision manufacturing, technical expertise, and customer-oriented service. Every project is approached with the same objective: delivering custom flange solutions that meet the customer's drawings, industry standards, and long-term performance expectations.

Advanced CNC Manufacturing Technology

Precision begins with advanced equipment.

Our factory is equipped with fully automated CNC lathes, machining centers, drilling machines, and inspection instruments that enable us to manufacture complex custom flanges with high dimensional accuracy.

These technologies allow us to produce:

• Large-diameter flanges

• Pressure Vessel Flanges

• Tube sheets

• Forged non-standard flanges

• OEM and ODM flange products

Modern CNC equipment also improves production consistency, shortens lead times, and minimizes dimensional deviations.

Experienced Engineering Team

Manufacturing according to customer drawings requires more than machining capabilities.

Our engineers participate in every stage of the project, including:

• Drawing evaluation

• Material recommendation

• Machining process planning

• Tolerance verification

• Technical consultation

• Production follow-up

If we identify opportunities to improve manufacturability or reduce production costs without affecting product performance, we communicate our suggestions before production begins.

This collaborative approach has helped many customers simplify installation and improve overall project efficiency.

Comprehensive Quality Management

Quality is controlled throughout the entire manufacturing process.

Typical inspections include:

• Raw material verification

• Chemical composition analysis

• Mechanical property testing

• Dimensional inspection

• Hardness testing

• Surface roughness measurement

• Ultrasonic Testing (UT)

• Magnetic Particle Testing (MT)

• Dye Penetrant Testing (PT)

• Positive Material Identification (PMI)

Every inspection is performed according to customer requirements and applicable industry standards.

Inspection reports and material certificates are available upon request.

Flexible Production Capacity

Industrial projects vary greatly in size and complexity.

Our production system supports:

• Prototype development

• Small batch manufacturing

• Medium-volume production

• Large export orders

• Long-term OEM cooperation

Whether customers need one customized flange or thousands of production parts, we provide consistent quality and reliable delivery schedules.

Professional Export Service

We supply customers across multiple international markets.

To ensure products arrive safely, we provide:

• Export-grade wooden packaging

• Rust prevention treatment

• Protective flange covers

• Product identification labels

• Inspection documentation

• Material certificates

Our logistics team coordinates shipment arrangements to help customers receive products efficiently and on schedule.

Best Practices for Installation and Maintenance

Even the highest-quality flange requires proper installation and maintenance to deliver long-term performance.

Based on our manufacturing experience, we recommend the following practices.

Inspect Every Flange Before Installation

Before installation, verify:

• Surface finish

• Bolt hole alignment

• Flange dimensions

• Material identification

• Sealing face condition

Small defects can lead to leakage if overlooked during assembly.

Use Matching Gaskets and Fasteners

A flange connection performs as a complete sealing system.

Selecting compatible:

• Gaskets

• Bolts

• Nuts

• Washers

is essential for achieving reliable sealing under operating conditions.

Tighten Bolts Evenly

Improper tightening is one of the most common causes of leakage.

For reliable sealing:

• Tighten bolts using a cross pattern.

• Apply torque gradually in several stages.

• Use calibrated torque tools.

• Follow equipment manufacturer recommendations.

These methods help distribute gasket pressure evenly.

Perform Regular Preventive Maintenance

Routine inspections help identify potential issues before failures occur.

Inspection items include:

• Corrosion

• Surface damage

• Bolt condition

• Leakage

• Vibration effects

Preventive maintenance reduces downtime and extends equipment life.

Frequently Asked Questions

1. Can you manufacture flanges exactly according to our drawings?

Yes.

This is one of our core strengths.

Our engineering team carefully reviews every customer drawing before production to ensure dimensional accuracy, material suitability, and manufacturing feasibility.

2. Which materials are available?

We manufacture industrial non-standard flanges using:

• Carbon Steel

• Stainless Steel

• Alloy Steel

• Duplex Stainless Steel

• Nickel-Based Alloys

Material recommendations are based on pressure, temperature, corrosion resistance, and application requirements.

3. Which industries commonly use your products?

Our customized flanges are widely used in:

• Oil and gas

• Petrochemical processing

• LNG projects

• Power generation

• Pressure vessels

• Heat exchangers

• Marine engineering

• Water treatment

• Heavy industrial equipment

4. What information should be provided for a quotation?

To prepare an accurate quotation, we recommend providing:

• Engineering drawings

• Material specifications

• Pressure rating

• Operating temperature

• Flange dimensions

• Quantity required

• Inspection requirements

Complete information allows us to provide faster quotations and more accurate production planning.

5. Why choose a custom flange instead of modifying a standard flange?

Although modifying standard flanges may seem less expensive initially, it often results in:

• Poor alignment

• Reduced sealing performance

• Additional machining

• Higher installation costs

• Increased maintenance

Manufacturing directly according to customer drawings provides better compatibility, higher reliability, and a longer service life.

Conclusion

Every industrial piping system is only as reliable as the components that connect it. At Zhejiang Songlin Flange Co., Ltd., we understand that Industrial Non-Standard Flanges Manufactured to Customer Drawings are not ordinary products—they are precision-engineered components designed to meet unique technical requirements and demanding operating conditions.

By combining advanced CNC machining technology, experienced engineers, comprehensive quality control, and customer-focused service, we provide customized flange solutions that help improve installation efficiency, sealing reliability, and long-term operational safety. Whether your project requires pressure vessel flanges, large-diameter flanges, tube sheets, or fully customized non-standard flanges, we have the expertise and manufacturing capability to deliver products that meet your exact specifications.
