High Quality Pipe Flange Manufacturer for OEM Projects: Engineering Reliability for Global Industrial Systems

Introduction

Have you ever faced a pipeline failure that stopped an entire production line just because of a small leaking flange joint?

From my experience as a manufacturer, I can say this is more common than most engineers expect.

As a High Quality Pipe Flange Manufacturer for OEM Projects, I have seen how the smallest deviation in flange machining, material selection, or installation can lead to major industrial downtime. In high-pressure systems, every flange connection is a safety boundary.

At Zhejiang Songlin Flange Co., Ltd., we produce standard and OEM pipe flanges using CNC machining, strict dimensional inspection, and certified raw materials. Our goal is simple: deliver flanges that ensure sealing reliability, mechanical strength, and long-term industrial stability.

In this article, I will share practical engineering insights, real manufacturing experience, and selection guidance based on global industrial applications.

On This Page

• What is a Pipe Flange in OEM Industrial Systems

• Why High Quality Standard Flanges Matter

• Engineering Design Principles

• Material Selection Guide

• Manufacturing Process

• Industrial Applications

• Selection Guide & Engineering Tips

• Frequently Asked Questions

What is a Pipe Flange in OEM Industrial Systems?

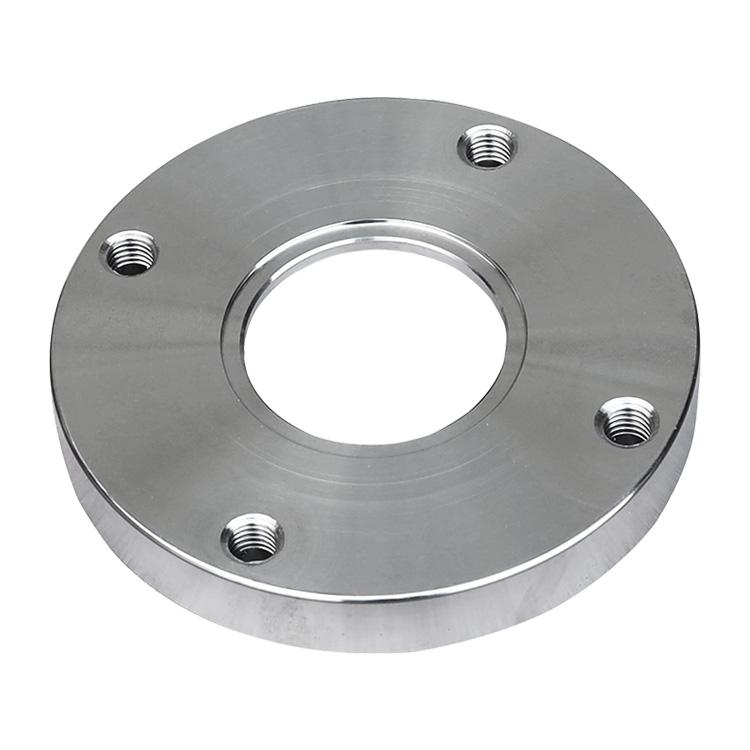

A pipe flange is a mechanical connection component used to join pipes, valves, pumps, and industrial equipment.

In OEM industrial projects, I usually explain it in simple terms:

A flange is a standardized sealing interface that allows pipelines to connect securely, maintain pressure integrity, and remain easy to maintain.

Core Functions of Pipe Flanges

A High Quality Pipe Flange Manufacturer for OEM Projects must ensure that every flange performs these key roles:

• Provide leak-proof sealing between pipe sections

• Connect different pipeline components securely

• Allow easy maintenance and disassembly

• Withstand internal pressure and external vibration

• Maintain alignment under thermal expansion

Even a minor defect can lead to system-wide instability.

Why Flanges Are Critical in Industrial Engineering

Industrial pipelines transport:

• Oil

• Gas

• Steam

• Water

• Chemical fluids

Without reliable flange connections, these systems cannot operate safely or continuously.

Why High Quality Standard Flanges Matter in OEM Projects

In OEM engineering projects, standard flanges are not just components—they are system compatibility foundations.

From my manufacturing experience, I focus on three major reasons:

1. Global Compatibility and Standardization

Standard flanges follow ASME, ANSI, and DIN systems, ensuring:

• Easy replacement worldwide

• Unified installation standards

• Reduced engineering errors

2. Safety in High-Pressure Systems

Industrial systems often face:

• High internal pressure

• Temperature cycling

• Continuous vibration

A high-quality flange ensures stable sealing under these conditions.

3. Cost Efficiency Over Lifecycle

High-quality flanges reduce:

• Maintenance frequency

• Downtime risk

• Replacement cost

Table 1. Pipe Flange Types vs OEM Industrial Applications

Source: ASME B16.5, ASME B16.47, Industrial Pipeline Engineering Handbook

Engineering Design Principles of Pipe Flanges

As a High Quality Pipe Flange Manufacturer for OEM Projects, I focus on three engineering foundations: sealing stability, structural strength, and alignment precision.

Flange Face Design Types

Common sealing surfaces include:

• Raised Face (RF)

• Flat Face (FF)

• Ring Type Joint (RTJ)

Each design affects:

• Pressure capacity

• Gasket performance

• Leakage resistance

Bolt Load Engineering

A flange system depends heavily on bolt force distribution.

If bolts are uneven:

• Gasket deformation occurs

• Leakage risk increases

• Flange warping may happen

Pressure Class Engineering

Standard pressure classes include:

• Class 150

• Class 300

• Class 600

• Class 900+

Higher class means:

• Thicker flange body

• Stronger material

• Higher sealing force

Thermal Stress Considerations

Flanges must handle:

• Heating expansion

• Cooling contraction

• Cyclic stress loading

If not controlled, fatigue failure occurs.

Table 2. Material Selection for Standard Pipe Flanges

Source: ASTM A182, ASTM A240, ASME Material Standards, ASM Handbook

Why Material Selection Defines Flange Quality

From real engineering experience, I often see:

• Wrong material → corrosion leakage

• Low-grade steel → bolt failure

• Poor selection → system shutdown

Material selection is not optional—it is structural safety.

Manufacturing Process of High Quality Pipe Flanges

At Zhejiang Songlin Flange Co., Ltd., we treat every flange as a pressure safety component.

Step 1: Raw Material Inspection

We check:

• Chemical composition

• Mechanical strength

• Surface defects

• Traceability certification

Step 2: Forging or Cutting Preparation

Depending on type:

• Forged blanks for high-pressure flanges

• Plate cutting for standard flanges

Step 3: CNC Precision Machining

We control:

• Outer diameter accuracy

• Bolt hole positioning

• Sealing surface flatness

Step 4: Heat Treatment Process

We improve:

• Material strength

• Stress relief

• Structural stability

Step 5: Final Quality Inspection

We verify:

• Dimensional accuracy

• Flatness control

• Hole alignment

• Surface finish

Table 3. Manufacturing Accuracy Standards (OEM Level)

Source: ASME B16.5, ASME B16.47, Industrial Forging & Machining Standards

Industrial Applications of Pipe Flanges

A High Quality Pipe Flange Manufacturer for OEM Projects supports multiple industries:

Oil & Gas Industry

• Pipeline systems

• Refinery equipment

• Offshore platforms

Chemical Processing Industry

• Reactor pipelines

• Acid transport systems

• Cooling lines

Power Generation

• Steam pipelines

• Boiler systems

• Cooling circuits

Marine Engineering

• Seawater systems

• Ship pipelines

• Offshore structures

Water Treatment Systems

• Pump stations

• Distribution networks

• Filtration pipelines

Why Flanges Are Essential in Industrial Systems

Because they ensure:

• Pressure sealing safety

• Easy maintenance access

• Structural flexibility

• Long-term system reliability

Field Installation Practices for Pipe Flanges (From Real Engineering Experience)

As a High Quality Pipe Flange Manufacturer for OEM Projects, I always remind customers that even the best flange can fail if installation is not controlled properly.

In real industrial sites, I’ve seen more issues caused by installation errors than by manufacturing defects.

Step 1: Sealing Face Cleaning (Most Ignored Step)

Before installation, I always check:

• No dust or metal chips

• No oil or grease contamination

• No scratches on sealing face

Even a tiny particle can create a leakage path under pressure.

Step 2: Proper Pipe Alignment

Misalignment creates hidden stress inside the flange joint.

Common problems:

• Uneven bolt loading

• Gasket distortion

• Long-term deformation

Proper alignment ensures uniform force distribution.

Step 3: Controlled Bolt Tightening Sequence

This is one of the most important steps in flange assembly.

I always recommend:

• Cross-pattern tightening

• Gradual torque increase (3–4 stages)

• Final torque re-check after pressure test

Step 4: Pressure Testing Before Operation

Industrial standards require:

• Hydrostatic testing

• Leak detection testing

• Pressure holding verification

This confirms system safety before startup.

Table 4. Installation Error vs Failure Risk in Pipe Flanges

Source: ASME PCC-1 (Guidelines for Pressure Boundary Bolting), API 570 Pipeline Inspection Standards

Common Flange Failure Causes in Industrial Systems

From my manufacturing and field feedback experience, flange failures usually follow predictable patterns.

1. Bolt Preload Imbalance

This is the most frequent failure cause.

What happens:

• One side is over-tightened

• The other side remains loose

• Gasket compression becomes uneven

Result:

• Slow leakage

• Or sudden joint failure under pressure

2. Wrong Gasket Material Selection

Even a perfectly machined flange cannot compensate for a wrong gasket.

Examples:

• Rubber used in steam systems → rapid degradation

• PTFE used in high vibration → sealing instability

• Graphite missing in high temperature systems → sealing breakdown

3. Corrosion at Sealing Surface

Corrosion leads to:

• Micro leakage channels

• Reduced sealing pressure

• Long-term failure risk

4. Thermal Cycling Fatigue

In systems with frequent temperature changes:

• Expansion and contraction stress builds up

• Bolt tension changes over time

• Gasket loses elasticity

Table 5. Flange Failure Mode Analysis (Industry Data Insight)

Source: ASME Maintenance Engineering Reports, API 581 Risk-Based Inspection Guidelines

OEM Pipe Flange Selection Strategy (What I Use in Real Projects)

When I work with OEM customers, I never select flanges based on price alone.

Instead, I follow a structured engineering method.

Step 1: Define Pressure Class First

Typical classes:

• Class 150 → low pressure systems

• Class 300 → medium pressure systems

• Class 600 → high pressure systems

• Class 900+ → extreme pressure systems

Pressure class determines everything else.

Step 2: Identify Fluid Characteristics

Ask:

• Is it corrosive?

• Is it high temperature?

• Is it abrasive or chemical-based?

This directly affects material selection.

Step 3: Define Operating Environment

Different environments require different flange designs:

• Offshore → corrosion-resistant materials

• Chemical plants → chemical-resistant sealing systems

• Power plants → thermal resistance focus

Step 4: Maintenance Strategy Planning

Two approaches:

• Frequent maintenance → easy disassembly flanges (Slip-on type)

• Long-term operation → welded flanges (Weld neck type)

Practical Engineering Insight

The best flange is not the strongest one—it is the one that matches the system conditions exactly.

Table 6. OEM Flange Selection Guide by Industry

Source: ASME B16.5, ANSI Standards, Industrial Piping Design Handbook

Real OEM Application Scenarios (Field Perspective)

As a High Quality Pipe Flange Manufacturer for OEM Projects, I’ve supplied flanges for multiple industries.

Oil Refinery Systems

Challenges:

• High pressure pipelines

• Continuous operation

• Corrosive hydrocarbons

Solution:

• Weld neck flanges with SS316L or alloy steel

Chemical Processing Plants

Challenges:

• Acidic media

• High corrosion risk

• Frequent maintenance needs

Solution:

• PTFE-compatible gasket + SS316L flanges

Power Generation Systems

Challenges:

• High temperature steam

• Thermal cycling stress

Solution:

• Alloy steel flanges with graphite gaskets

Marine Offshore Platforms

Challenges:

• Saltwater corrosion

• Continuous vibration

Solution:

• Duplex steel flanges for maximum durability

Water Treatment Systems

Challenges:

• Large-scale continuous flow

• Cost efficiency requirement

Solution:

• Carbon steel or SS304 flanges

Why OEM Engineering Matters in Flange Manufacturing

From my experience:

• OEM design = system-specific reliability

• Standard flange = general compatibility

• Custom Flange = optimized performance

OEM engineering reduces long-term operational risk significantly.

Engineering Optimization for High Quality Pipe Flange Manufacturer for OEM Projects

After years of manufacturing experience, I can clearly say that flange performance is not defined by a single factor. It is the result of a full system:

• Material selection

• Machining precision

• Installation quality

• Operating environment

As a High Quality Pipe Flange Manufacturer for OEM Projects, I always emphasize one principle:

Real reliability comes from system optimization, not just component strength.

1. Improve Sealing Surface Precision

The sealing face is the most critical part of a flange.

We improve performance by:

• CNC fine machining

• Surface roughness control

• Flatness correction

Even a small imperfection can create micro-leakage paths.

2. Optimize Bolt Load Distribution

Uniform bolt force ensures:

• Stable gasket compression

• Reduced stress concentration

• Longer service life

Best practice:

• Cross tightening

• Step-by-step torque control

• Final re-torque after pressure testing

3. Select Gasket Based on Real Conditions

Correct gasket choice improves system performance significantly:

• High temperature → graphite

• Chemical systems → PTFE

• High pressure → spiral wound gasket

4. Control Thermal Expansion Behavior

Thermal cycling must be considered in design:

• Expansion compensation

• Stress redistribution

• Material matching

Table 7. Engineering Optimization Impact on Flange Performance

Source: ASME Pressure Equipment Engineering Reports, API Reliability Studies, Industrial Maintenance Data Handbook

Global Industry Trends in Pipe Flange Manufacturing

As a High Quality Pipe Flange Manufacturer for OEM Projects, I have observed several strong global trends:

1. Shift Toward High-Performance Materials

• Duplex steel demand increasing

• SS316L replacing carbon steel in chemical systems

• Alloy steel used in extreme pressure environments

2. CNC Precision Becoming Industry Standard

Traditional manual machining is being replaced by:

• CNC automated drilling

• Digital measurement systems

• High-precision tolerance control

3. OEM Customization Demand Rising

Customers now require:

• Non-standard Flange dimensions

• Special pressure ratings

• Industry-specific designs

4. Focus on Lifecycle Cost Instead of Purchase Cost

Modern engineering prioritizes:

• Long service life

• Low maintenance cost

• System reliability

Frequently Asked Questions (FAQ)

1. What is a pipe flange used for in industrial systems?

A pipe flange is used to connect pipes, valves, and equipment while ensuring pressure sealing and easy maintenance.

2. Why is SS316L commonly used in flanges?

Because it provides excellent corrosion resistance, strong mechanical properties, and long-term stability in harsh environments.

3. What causes flange leakage in OEM systems?

Main causes include uneven bolt tightening, wrong gasket selection, surface damage, and thermal stress.

4. What is the best flange type for high-pressure systems?

Weld neck flanges and socket weld flanges are the most reliable for high-pressure applications.

5. Can pipe flanges be fully customized?

Yes. OEM flange production allows customization of material, pressure class, dimensions, and sealing design.

Table 8. Flange Type Performance Comparison Summary

Source: ASME B16.5, ASME B16.47, Industrial Pipeline Engineering Handbook

Final Engineering Conclusion

A High Quality Pipe Flange Manufacturer for OEM Projects is not just producing metal parts—it is providing system safety components for global industry.

From my experience, I always summarize flange engineering into three key truths:

• A flange must match the system, not just the drawing

• Precision machining directly determines sealing reliability

• Installation quality is as important as manufacturing quality

When all three are controlled properly, the result is a stable, safe, and long-life industrial piping system.
